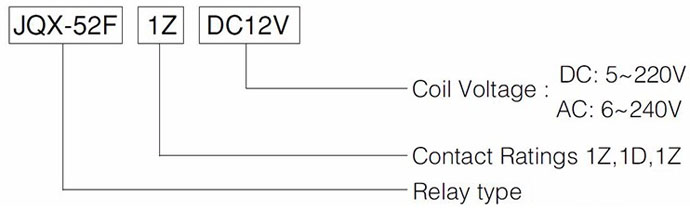

 40A 24VDC Power Relay Module JQX-52F high power relay

Features


40A Contact Change-over Capacity

Swift Connection

Fastness of Guide Rail


Contact Ratings


Contact Ratings 1Z  1H  1D
Contact Resistance 100MΩ (1A 6VDC)
Contact Material AgCdO
Contact Capacity 40A  250VAC /30VDC

Specification


Insulation Resistance 1000MΩ   500VDC
Dielectric Strength BCC  2500V  1 min
BOC  1200V  1 min
Operate Time 25ms/25ms
Terminal Type Screw

Coil Ratings


Nominal Coil Power                          DC : 2.0W   AC:  2.5VA


Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
6 4.80 0.60 20
12 9.60 1.20 65
24 19.2 2.40 330
48 38.4 4.80 1280
60 48.0 6.00 2800
110 88.0 11.0 9650
Nominal Voltage VAC Pull-in Voltage VAC Release Voltage VAC Coil Resistance Ω :± 10%
6 4.80 1.80 14.4
12 9.60 3.60 57
24 19.20 7.20 250
48 38.40 14.4 921
110 88.00 36.0 5000
220/240 176.00 72.00 19600/25040

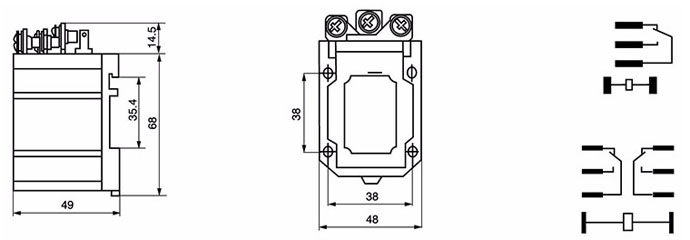

Dimension.Buttom View

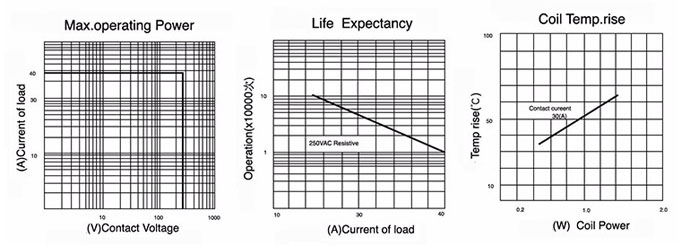

Reference Data
