 Electromagnetic Power Relay JQX-38F 3Z High power relay 24v

Features


With open type,dust-proof cover type

With matched socket


Contact Ratings


Contact Ratings 2Z  2H  2D 3Z  3H  3D
Contact Resistance 100MΩ (1A 6VDC)
Contact Material AgCdO
Contact Capacity 30A /40A  250VAC /30VDC 30A /40A  250VAC /30VDC

Specification


Insulation Resistance 1000MΩ   500VDC
Dielectric Strength BCC  2500V  1 min
BOC  1200V  1 min
Operate Time 25ms/15ms
Terminal Type PCB

Coil Ratings


Nominal Coil Power                  DC : 2.0W-2.5W   AC  4.5VA

Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
12 8.40 1.20 57
24 16.8 2.40 230
48 33.6 4.80 2000
60 42.0 6.00 2850
Nominal Voltage VAC Pull-in Voltage VAC Release Voltage VAC Coil Resistance Ω :± 10%
12 9.60 3.60 10
24 19.20 7.20 40.3
110 88.00 36.00 847
220/240 176.00 72.00 3380

Dimension.Buttom View

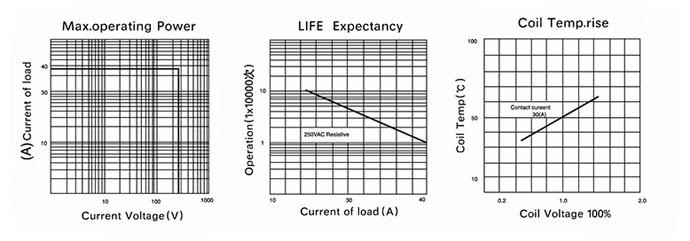

Reference Data
