 JTX-2C General Purpose Relay,mini electromagnetic relay

Relay is a kind of automatic switching component with isolation function, which is widely use in remote control. remote measuring ,telecom, automatic control, integration of machinery and ekectrification,electric and electronic equipments, it's one of the most important controlling components.


Features


  • 10A Contact operating capacity
  • With 2Z,3Z contact forms
  • Standard tube terminal
  • Various connecting wire types


Contact Ratings


Contact Ratings 2Z  3Z ( 2C )  ( 3C )
Contact Resistance 50mΩ (at 1A 16VDC)
Contact Material AgCdO
Contact Capacity 5A / 10A 7A/10
28VDC/250VAC 28VDC/250VAC

Specification


Insulation Resistance 500MΩ  500VDC
Dielectric Strength BCC  1500VAC   1Min
BOC  1000VAC   1Min
Operate Time 20ms/15ms
Terminal Type PCB Socket

Coil Ratings


Nominal Coil Power 1.5W/2.5VA


Coil Versions


Nominal Voltage VDC Pull-in Voltage VDC Release Voltage VDC Coil Resistance Ω :± 10%
6 4.8 0.60 22.5
12 9.6 1.20 50.6
24 19.2 2.40 90
48 38.4 4.80 810
100 80.0 10.0 7550
110 88.0 11.0 12100

Nominal Voltage VAC Pull-in Voltage VAC Release Voltage VAC Coil Resistance Ω :± 10%
6 4.80 1.80 4.5
12 9.60 3.60 18
24 19.2 7.20 72
48 38.4 14.4 288
110/120 88.0 36.0 1512
220/240 176 72.0 6050/7200

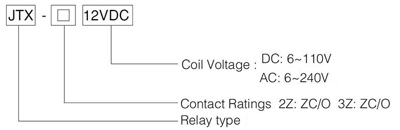

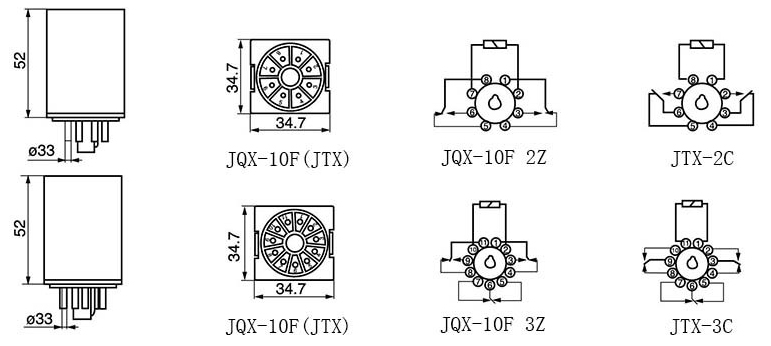

Wiring Diagram & Buttom View

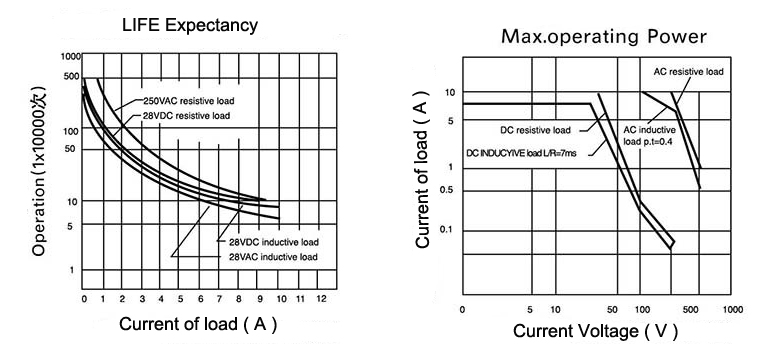

Reference Data
