 5A PCB Solid State Relay

Features :

Load Current : 3A, 5A

Mount : PCB

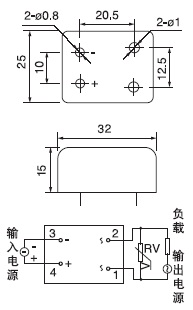

Outline Dimensions (mm)



Specification :


Control Voltage Range 3-32VDC or 3-14VDC
Max Input Current 6-35mA
Must Operate Voltage 3.5VDC
Must release Voltage 1.5VDC
Load Voltage 220VAC or 380VAC
Max Load Current 3A , 5A
Off-State Leakage Current < 1.5mA
On-State Voltage Drop ≤ 1.5V
Delectric Strength 2500V
Operating Temperature -20℃~70℃
Certificate CE

Control Voltage Range 3-32VDC or 3-14VDC
Max Input Current 6-35mA
Must Operate Voltage 3.5VDC
Must Release Voltage 1.5VDC
Load Voltage 220VAC or 380VAC
Max. Load Current 1A
Off-State Leakage Current < 1.5mA
On-State Leakage Drop
≤ 1.5V
Delectric Strength 2500V
Operating Temperature -20℃~70℃
Certificate CE
